12/7/2024

July 2024: New Antenna Solutions from Badland

Discover Badland’s latest innovations in the July 2024 collection. Engineered for cutting-edge applications across GSM, Wi-Fi, and LTE frequencies, these antennas are built to perform in diverse environments. With robust designs and superior efficiency, they are the go-to choice for modern communication networks.

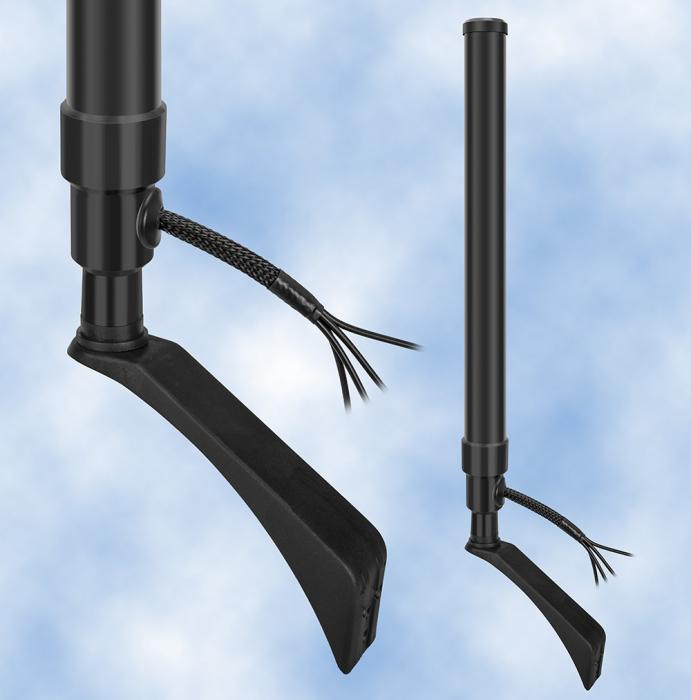

Frequency: 3G / 4G /GPRS / GSM / LTE / 5G LTE Antennas / LTE

Mountings: Fixed Mounted Base Station / Brackets

Polarity: Vertical or Horizontal

Gain: 6db

VSWR: 1.2 : 1 @ tuned frequency

Dimensions: Height: 675mm (with Bracket) / Width: 55mm / Depth: 190 mm (with Bracket) / Diameter: 55mm (48mm Tube)

Colour: Black or White

Cable: 3.00 metres of LBC100

Connector: To Be Specified

Power Handling: 50 watts

Impedance: 50 ohms

Operating Temperature: -40° / +85°C ( -40° / 185°F )

Protection: IP68

HI GAIN COLINEAR 4 X CABLES WITH WALL BRACKET 4G/5G

ID : 4G/5G/MIMOCOLW/BX4

1

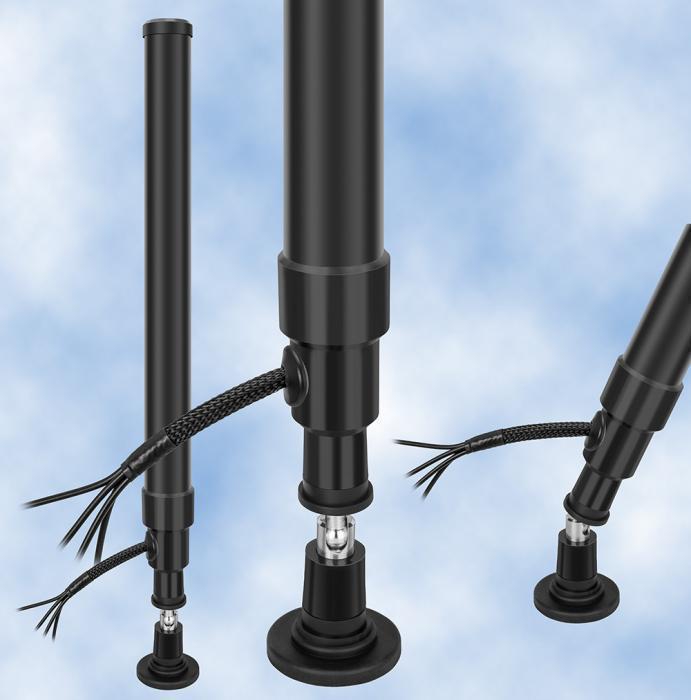

Frequency: LoRa WAN / 3G / 4G /GPRS / GSM / LTE / 5G LTE Antennas

Mountings: Mag Mount

Polarity: Vertical or Horizontal

Gain: 6db

VSWR: 1.2 : 1 @ tuned frequency

Dimensions: Height: 622mm / Width: 100mm off bracket (when upright) / Depth: N/A / Diameter: 93mm

Colour: Black or White

Cable: 3.00 metres of LBC100

Connector: To be specified

Power Handling: 50 Watts

Impedance: 50 Ohm

Operating Temperature: -40° / +85°C ( -40° / 185°F )

Protection: IP68

HI GAIN MIMO COLINEAR 4 X CABLE MAG MOUNT WITH TILT & SWIVEL

ID : 4G5GMIMOMAGT/SX4

2

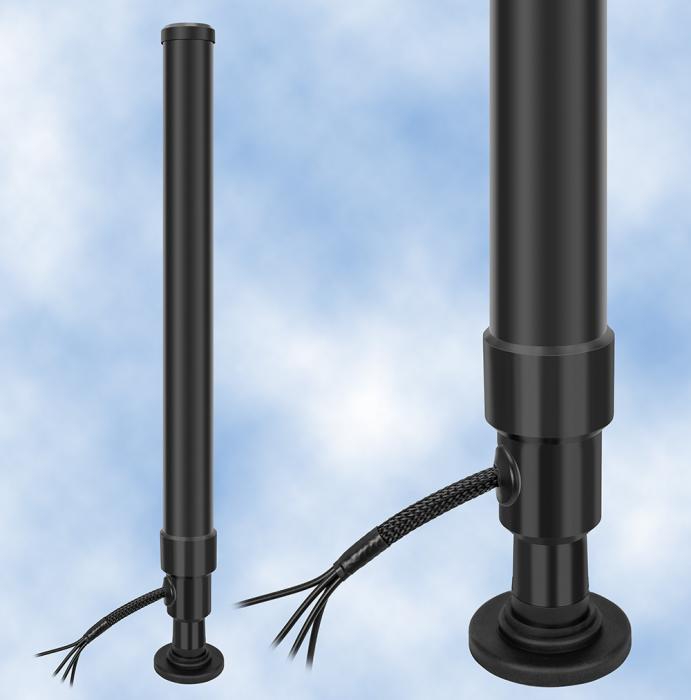

Frequency: LoRa WAN / 3G / 4G /GPRS / GSM / LTE / 5G LTE Antennas / LTE

Mountings: Mag Mount

Polarity: Vertical or Horizontal

Gain: 6db

VSWR: 1.2 : 1 @ tuned frequency

Dimensions: Height: 556mm / Width: N/A / Diameter: 93mm

Colour: Black or White

Cable: 3.00 metres of LBC100

Connector: To Be Specified

Power Handling: 40 Watts

Impedance: 50 Ohm

Operating Temperature: -40° / +85°C ( -40° / 185°F )

Protection: IP68

HI GAIN MIMO COLINEAR 4 X CABLES WITH MAG MOUNT 4G/5G

ID : 4G5GMIMOCOLMAG

3
