August 2026: Going the Distance
As the summer holidays get into full swing, staying connected on the move matters more than ever. Badland's antennas are engineered to hold a strong signal wherever the journey leads. Take a look at our featured products below or explore our website to find out more.
Frequency: LoRa WAN / 3G / 4G /GPRS / GSM / LTE / GSM / Bluetooth / WiFi / WI-MAX / 5G LTE Antennas / LTE
Mountings: Mag Mount
Polarity: VERTICAL
Gain: 1.8dB
VSWR: 1.5 : 1
Dimensions: Height: CUT TO FREQUENCY / Width: N/A / Length: N/A / Diameter: 60 MM
Cable: 5.00 metres of RG58
Connector: TO BE SPECIFIED
Power Handling: 35 WATTS
Impedance: 50 Ohm
Operating Temperature: -40° / +85°C ( -40° / 185°F )
Protection: IP67
MAGNETIC MOUNT MOTOMAG 4G 5G
ID : MOTOMAG
1Frequency: LoRa WAN / 3G / 4G /GPRS / GSM / LTE / 5G LTE Antennas / LTE
Mountings: Fixed Mounted Base Station / Brackets
Polarity: Vertical
Gain: 8 dbi
VSWR: 1.2: 1 @frequency
Dimensions: Height: 526 mm / Width: / Length: / Diameter: 52mm
Cable: 3 METRES metres of LBC100
Connector: To Be Specified
Power Handling: 50 WATTS
Impedance: 50 ohm
Operating Temperature: -40° / + 85°C
Protection: IP67
HI GAIN 4G 5G MIMO COLINEAR WITH X 8 CABLES WITH WALL BRACKET
ID : 4G5GMIMOCOLX8WB
2Frequency: LoRa WAN / 3G / 4G /GPRS / GSM / LTE / Bluetooth / WiFi / WI-MAX / 5G LTE Antennas / LTE
Mountings: Fixed Body Mount
Polarity: Vertical or Horizontal
Gain: 3 dbi
VSWR: 1.2 : 1 @ tuned frequency
Dimensions: Height: 3 cm / Width: N/A / Length: N/A / Diameter: 92 mm
Cable: 3.00 metres of RG174
Connector: To Be Specified
Power Handling: 30 watts
Impedance: 50 ohms
Operating Temperature: -40° / +85°C ( -40° / 185°F )
Protection: IP68

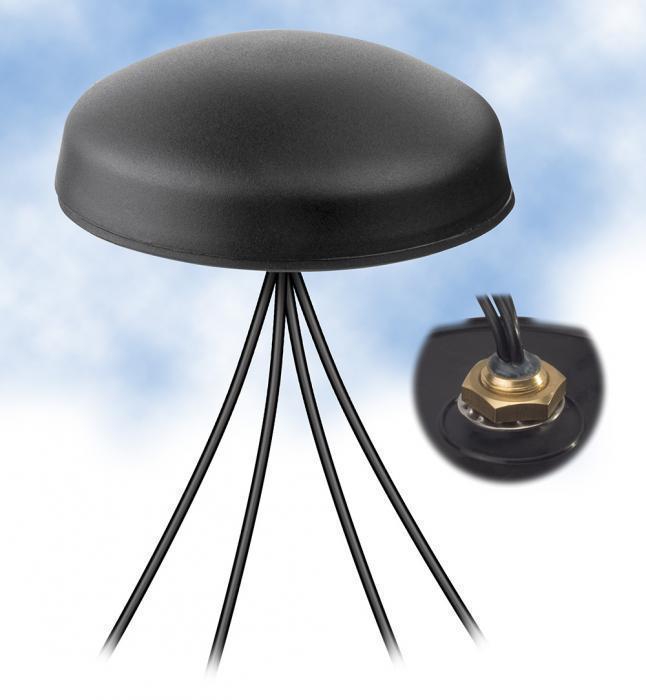

DOME MULTIBAND MIMO ANTENNA 3G/4G/5G WIFI
ID : 3G4G5GWIFIMIMODOME
